SIO8BXS-SYNC - End of Life

Eight Channel Synchronous Serial To Parallel Controller with Software Configurable Cable Tranceivers (RS422, RS232 and others).

Please Note:

The PCI-SIO8BXS-SYNC is now considered End of Life. For more information, please read the End of Life document for this product. For future designs, we recommend the PCIe4-SIO8BX2V-SYNC.

The PCI-SI08BXS-SYNC board is an eight channel serial interface card which provides a simple synchronous serial interface capability for PCI applications. The PCI-SIO8BXS-SYNC combines a flexible parallel/serial converter and 16 external FIFOs to provide eight fully independent synchronous serial channels. These features, along with a high performance PCI interface engine, give the PCI-SIO8BXS-SYNC unsurpassed performance in a serial interface card. The PCI-SIO8BXS-SYNC features software configurable cable transceivers (RS422, RS232 and others). The PCI-SIO8BXS-SYNC is based on the four channel SIO4BX product line from General Standards Corporation. In order to maintain software compatibility, the PCI-SIO8BXS-SYNC is implemented as two independent four channel SIO4BX-SYNC cards. What is the difference between the SIO8BXS and the SIO8BXS-SYNC?

New Feature! Call for availability of a conduction cooled (CCPMC) version of this board! Read more about our new PMC Conduction Cooled products!

Extended temperature versions are available for all products. Please contact us for more information! We feature free Windows and Linux drivers where available.

CE Certification Available - Call factory for status

Customers who purchased this product also purchased the following: Cables, Breakout Boards, BNC Boxes, LVDS Clock Driver Boards, PCI adapters!

Click on the images below to view larger photos.

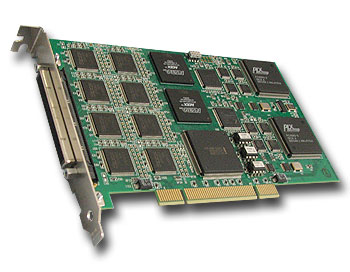

Click to enlarge
*True Form Factor.

Download a complete data sheet for the SIO8BXS-SYNC

Download the user manual for the SIO8BXS-SYNC

For device drivers, please visit our Downloads section.

REACH and RoHS Statements
