Any PMC I/O board can be used on PCI Express, PCI-X, cPCI-X, PCI, cPCI, PC-104-Plus via an adapter.

PCIe Adapters

PCIe104x1 to PMC Adapter

$1145 each for PCIe104x1 to PMC Adapter (with on-board DC/DC converter)
Adapts a single-width PMC form factor to a one-lane PCI Express (x1 link) PCI/104-Express stack.
View the spec sheet for the PCIe104x1 to PMC Adapter.

PCIe Adapters

$1145 each for PCIe4-to-PMC-Adapter-0 (with on-board DC/DC converter)
$1245 each for PCIe4-to-PMC-Adapter-1 (with on-board DC/DC converter and a fan)
Adapts a single-width PMC form factor to a four-lane PCI Express (x4 link)
The DC/DC converter eliminates the need for an external power supply connector.
Our PCI express adapters are software transparent; however, if you purchase the adapter and the PMC card on the same PO, we will plug them together and re-test the entire assembly.
View the spec sheet for the PCIe4-to-PMC-Adapter.
Download 3D CAD drawings of this product (STEP file)

$1145 each for PCIe4-to-PMC-Adapter-0-SCSI3 (with on-board DC/DC converter)
$1245 each for PCIe4-to-PMC-Adapter-1-SCSI3 (with on-board DC/DC converter and a fan)
Identical to our PCIe4 to PMC Adapter except for new SCSI3 connector which provides PMC rear I/O connection.
Adapts a single-width PMC form factor to a four-lane PCI Express (x4 link)
The DC/DC converter eliminates the need for an external power supply connector.
Our PCI express adapters are software transparent; however, if you purchase the adapter and the PMC card on the same PO, we will plug them together and re-test the entire assembly.
View the spec sheet for the PCIe4-to-PMC-SCSI3-Adapter.
Download 3D CAD drawings of this product (STEP file)

$845 each for PCIe1-to-PMC-Adapter-0 (with on-board DC/DC converter)
$945 each for PCIe1-to-PMC-Adapter-1 (with on-board DC/DC converter and a fan)
Adapts a single-width PMC form factor to a one-lane PCI Express (x1 link)
The DC/DC converter eliminates the need for an external power supply connector.
Our PCI express adapters are software transparent; however, if you purchase the adapter and the PMC card on the same PO, we will plug them together and re-test the entire assembly.
View the spec sheet for the PCIe1-to-PMC-Adapter.
Download 3D CAD drawings of this product (STEP file)

PCI Adapters

$345 each for PMC-TO-PCI ADAPTER
The PMC-to-PCI Adapter accommodates one PMC Card to a 64 bit PCI environment.
Download 3D CAD drawings of this product (STEP file)

$345 each for PCI32-TO-PMC ADAPTER
The PMC-to-PCI Adapter accommodates one PMC Card to a 32 PCI environment.

$495 each for PMC-TO-PCIX ADAPTER
64Bit PCI-X Bus to 64Bit PMC Adapter on a PCI card (short length). Operates with any combination of 64Bit or 32Bit PMC cards in 64Bit or 32Bit PCI-X Bus. View the user manual for the PMC-to-PCIX Adapter.


cPCI and PXI Adapters

cPCI to PMC Adapter: $400.00 - Optional PXI to allow PMC modules to connect to the PXI Trigger signals via the cPCI backplane
cPCI to PMC Adapter Ordering Options:
PXI Trigger connectivity to PMC connectors
VALUE:
without PXI TRIGGER: 0
with TRIGGER (0-3): 1
with TRIGGER (4-7): 2

PCI Bus Width:
32/64: -64
32 bit only: -32
*The -32 Option OMITS the PXI FEATURES

cPCI3U-To-PMC Adapter:: $400.00 - 3U / 33MHz / 32-Bit

cPCI6U-TO-PMC Adapter: $495.00 - 6U / 66MHz / 64-Bit

cPCIX to PMC Adapter $495.00 - 64Bit CPCI-X Bus to 64Bit PMC Adapter on 3U card. Adapter will operate with any combination of 64-bit or 32-bit PMC cards in 64Bit or 32Bit CPCI-X Bus
View the user manual for the cPCIX-to-PMC Adapter.

cPCIe Adapters

$1000.00 each for cPCIe4-to-PMC-Adapter
Adapts a single-width PMC form factor to cPCI Express (1x, x2, x4 link)
View the spec sheet for the cPCIe4-to-PMC-Adapter.
Download 3D CAD drawings of this product (STEP file)


PC104 Plus Adapters

$300 each for PMC-TO-PC/104-PLUS ADAPTER
The PMC-to-PC/104-Plus Adapter accommodates one PMC Card to a PC/104-Plus environment.
The adapter is stackable and can be used with multiple devices. Additional circuitry allows the
adapter to be configured as device 0-4.

$500 each for Rotated PMC-TO-PC/104-PLUS WITH REAR I/O ADAPTER
The“PMC-to-PC/104-Plus Adapter RIO180” has been rotated 180 degrees from the originally
designed “PMC-to-PC/104-Plus Adapter” and also includes RIO (Rear I/O).
The PMC-to-PC/104-Plus Adapter RIO180 accommodates one PMC Card to a PC/104-Plus
environment. The adapter is stackable and can be used with multiple devices. Additional circuitry
allows the adapter to be configured as device 0-4.

$195 each for PC104P-SPACER
The PC104P-SPACER is designed to allow an additional amount of distance to be placed between two PC/104-Plus modules with minimum effort. The PC104P-SPACER contains two stack-through connectors (ISA and PCI); it contains no active circuitry. This product is typically necessary when our “PMC-to-PC/104-Plus Adapter” is used with a PC104 (ISA only) module for an application. This PC104P-SPACER is typically not needed if the ISA connector is not being used. Our “PMC-to-PC/104-Plus Adapter RIO180” can solve component interference problems in most cases. Contact factory if you have any questions regarding the use of this spacer.
Download 3D CAD drawings of this product (STEP file)

$195 each for PCI104-Express SPACER
The PCI104-Express SPACER is designed to allow an additional amount of distance to be placed between two PCIe104 modules with minimum effort. The PCI104-Express SPACER contains one stack-through PCIe104 and PCI connector. This product is typically necessary when our "PC104P to PMC Adapter" or "PCIe104 to PMC Adapter" is used. Contact factory if you have any questions regarding the use of this spacer.

Don't forget to order a cable for the adapter if you are ordering an adapter with Rear I/O!

Cables:

FPGA DOWNLOAD CABLE:
View an image of the Download Cable for FPGA.
$145 for CABLE-DLOAD-FPGA-USB; download cable for Altera Cyclone II; download via computer USB port.

MDR CABLE with connector on Both ends:
I/O Connector: 68-pin MDR (Mini-D Ribbon) on a shielded twisted pair cable
View an image of the 68-pin MDR Cable.

Cable part numbers for boards are: CABLExSH-NNN, where x = length in feet and NNN is the model number of the board.
For example: The part number for a 12 foot MDR cable for the PC104P66-16AI64SSC board would be:
CABLE12SH-PC104P66-16AI64SSC-A-B-C-D-MDR
$795.00 each for cables up to 12ft long, x= length in feet, in multiples of 1.5 ft; add $10 per foot for cable lengths over 12 feet.

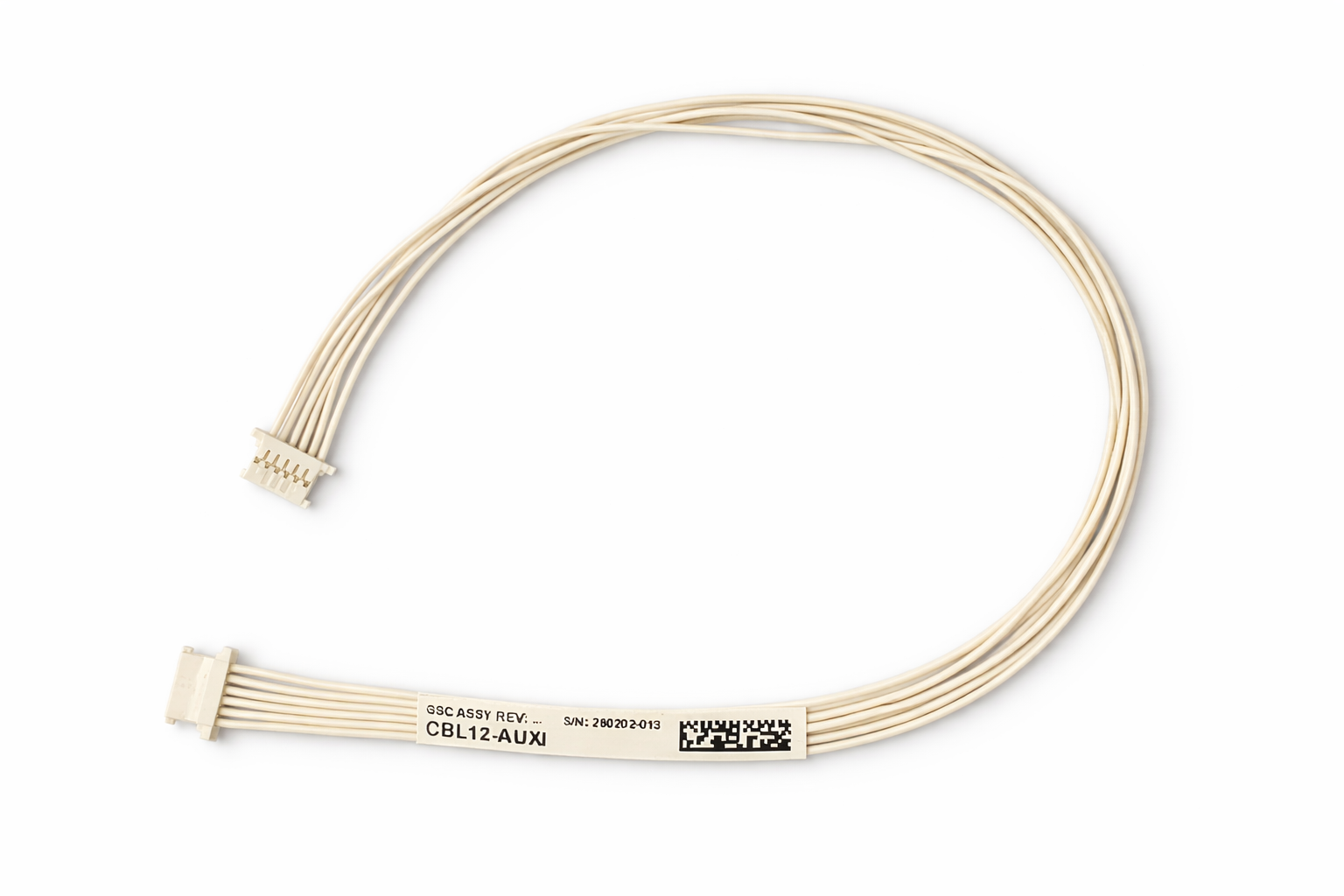

AUX ANALOG CARD INTERNAL SYNC-I/O TRIGGER CABLE:
The price of the Trigger Cable is $125 each and uses the same connector on both ends. View an image of the trigger cable.
The cable can be used on the following boards:
CCPMC-16AI32SSA, PCIe-18AO8, PMC66-16AI32SSC, PMC-18AO8, PMC66-18AI32SSC1M, PMC66-18AISS6, PMC-24DSI16WRC

RoHS COMPLIANT CABLES:
For RoHS Compliant cables with lead-free connectors and solder,
add $50 to the cost of the cable and add "-ROHS" to the end of the part number.

STANDARD FLAT RIBBON CABLE WITH MATING CONNECTOR ON BOTH ENDS:
Cables are flat ribbon twisted pair cable, non-shielded
Cable part numbers for boards are:
CABLEx-NNN, where x = length in feet, in multiples of 1.5 ft and NNN is the model number of the board.

$245 is the price for all cables with connectors on both ends, up to 12 feet long; add $10 per foot for cable lengths over 12 feet. For example: The part number for a 9 foot cable for the PMC-16AI64 board would be CABLE9-PMC-16AI64.

Please Note: if you require a metal backshell, please add -BACKSHELL to the part number and an additional $100 to the total cost.

STANDARD FLAT RIBBON CABLE WITH MATING CONNECTOR ON ONE END:
Cables are flat ribbon twisted pair cable, non-shielded
Cable part numbers for boards are:
CABLEx-NNN-FLAT, where x = length in feet, in multiples of 1.5 ft and NNN is the model number of the board.

$145 is the price for all cables with a connector on one end, up to 12 feet long; add $10 per foot for cable lengths over 12 feet.
For example: The part number for a 9 foot FLAT cable for the PMC-16AI64 board would be CABLE9-PMC-16AI64-FLAT.

Please Note: if you require a metal backshell, please add -BACKSHELL to the part number and an additional $100 to the total cost.

FOR SHIELDED STANDARD RIBBON CABLE:
(Connectors on both-ends or Flat with connector on one-end):
Cable part numbers for Shielded Cable are: CABLExSH-NNN, where x = length in feet; Add "SH" after the length and NNN is the model number of the board. Please specify if you would like wires attached.
Add W0 at the end of the model number if you do not need any wires attached.
Add W1 at the end of the model number if you need a wire attached to one end (3 inches).*
Add W2 at the end of the model number if you need a wire attached to both ends (3 inches).*
*Stranded wire, 22 AWG.

Shielded cables are $345 each up to 12ft, add $10.00 for each additional foot for cable lengths over 12 feet.
For example, the price for a shielded 6ft cable for the PCI-16SDI-HS-08-DB50, quantity 1 to 9, is:
$345 each for the CABLE6SH-PCI-16SDI-HS-08-DB50-W2, for a 6 ft shielded cable with DB50 connectors on both ends and a wire attached to both ends.
Please Note: if you require a metal backshell, please add -BACKSHELL to the part number and an additional $100 to the total cost.

STANDARD CABLE WITH 68-PIN and 100-PIN AMP MATING CONNECTOR:

Models with 68-pin AMP mating connector:

16AIC32

16AO16

16AO16FLV

16CLI8CLO4

18AISS6C

18AO8

16AIO

20AO8C500K

24DSI12

24DSI12-16SDI

24DSI6C500K

24DSI6LN

ADADIO

16AIO168

Models with 100-pin AMP mating connector:

18AISS8AO8

24DSI32

Cables with 68-PIN and 100-PIN AMP connector on both ends:

     PART NUMBER: CABLEx-NNN x = length in feet, in multiples of 1.5 ft and NNN is the model number of the board.

     PRICE: $345 EA up to 12 feet long; add $10 per foot for cable lengths over 12 feet.
     For example, The part number for a 9-foot cable for the PMC-16AIC32 board would be CABLE9-PMC-16AIC32.

     Cable P/N for Shielded Cables: CABLExSH-NNN where x = length in feet; add "SH" after the length,
     and NNN is the model number of the board. Please add an additional $100 to the total cost for shielded cables.

     Please specify if you would like wires attached.

     Add -W0 at the end of the model number if you do not need any wires attached.

     Add -W1 at the end of the model number if you need a wire attached to one end (3 inches).*

     Add -W2 at the end of the model number if you need a wire attached to both ends (3 inches).*

     *Stranded wire, 22 AWG.

     Please note: for METAL AMP backshell; please add "-BACKSHELL" to the part number and an additional $100 to the total cost.

Cable with a 68 Pin and 100-PIN AMP connector on one end:
(Mating connector on one end and no connector on the other end, add -FLAT after the part number)

     PART NUMBER: CABLEx-NNN-FLAT x = length in feet, in multiples of 1.5 ft and NNN is the model number of the board.

     PRICE: $245 EA up to 12 feet long; add $10 per foot for cable lengths over 12 feet.
     For example, the part number for a 9-foot cable with the connector on one end cable for the PMC-16AIC32 board
     would be CABLE9-PMC-16AIC32-FLAT.

     Cable P/N for Shielded Cables: CABLExSH-NNN-FLAT where x = length in feet; add "SH" after the length,
     and NNN is the model number of the board. Please add an additional $100 to the total cost for shielded cables.

     Please specify if you would like wires attached.

     Add -W0 at the end of the model number if you do not need any wires attached.

     Add -W1 at the end of the model number if you need a wire attached to one end (3 inches).*

     Add -W2 at the end of the model number if you need a wire attached to both ends (3 inches).*

     *Stranded wire, 22 AWG.

     Please note: for METAL AMP backshell, please add “-BACKSHELL” to the part number and an additional $100 to the total cost.

If using these cables in an environment where the board and cable might be subjected to any shock or vibration, it is highly recommended that customers purchase a cable with the backshell for a more durable connection. For lab or static environments where shock or vibration is not an issue, either cable may be used. The standard cable uses friction from the connector to hold it in place. The version with the backshell installed adds screws to more robustly connect the cable to the board. (click on the image to view a larger version)

Custom Cables with 85-PIN High Density Connectors:

The customized cable will be required for the follow products:
Please contact Sales for pricing on other lengths at sales@generalstandards.com.


The customized cable will be required for the following products:
PCIE-24DSI64C200K (two cables required per board)
CCVPX-16AI32SSC1M
CCVPX-16AO16C
CCVPX-16AISS8AO4C
Please contact Sales for pricing on all cables lengths at sales@generalstandards.com.

Serial Cables:

4-CHANNEL SERIAL IO CABLES

Cables for SIO4* boards have a special numbering system.
Serial Cables with 68-pin AMP mating connector are non-shielded with heat shrink wrapped ends.

Shielded Cables for SERIAL I/O cable:
Serial Cables with 68-pin AMP mating connector are non-shielded.
For Cables with 68 Pin AMP connectors if Shielded Cable is required add "SH" to the part number after the length specified and an additional $100 to the total cost.

The Cable part numbers for Shielded Cables are: CABLExSH-NNN, where x = length in feet; add "SH" after the length and NNN is the model number of the board.

Please specify if you would like wires attached.
Add W0 at the end of the model number if you do not need any wires attached.
Add W1 at the end of the model number if you need a wire attached to one end (3 inches).*
Add W2 at the end of the model number if you need a wire attached to both ends (3 inches).*
*Stranded wire, 22 AWG.

For cable with board mating connector on both end, see both ended pricing above.

Please Note:

  • For Metal Backshell, please add “-BACKSHELL” to the part number and an additional $100 to the total cost.
  • For RoHS Compliant cables with lead-free connectors and solder, add $50 to the cost of the cable and add "-ROHS" to the end of the part number
  • Cables for the legacy SIO4 products can be found at the bottom of this section.

If using these cables in an environment where the board and cable might be subjected to any shock or vibration, it is highly recommended that customers purchase a cable with the backshell for a more durable connection. For lab or static environments where shock or vibration is not an issue, either cable may be used. The standard cable uses friction from the connector to hold it in place. The version with the backshell installed adds screws to more robustly connect the cable to the board. (click on the image to view a larger version)

Cables compatible with PCIe-SIO4BX2, PCIe-SIO4BX2-SYNC, PMC-SIO4BX, PCI-SIO4BX, cPCI-SIO4BX, PC104P-SIO4BX, PC104P-SIO4B, PMC66-SIO4BXR, PMC66-SIO4BXR-SYNC, PCI-SIO4B, PCI-SIO4B-SYNC, cPCI-SIO4ARHM-SYNC, cPCI-SIO4ARHM, PMC-SIO4AR-SYNC, PMC-SIO4AR boards are:

* $295 is the price for serial IO cables up to 12 feet long. Please add $10 per foot for cable lengths over 12 feet.
x = length in feet in multiples of 1.5 feet.

Serial IO Cables with DB25 Connectors:

$295 * for CABLEx-SIO4B-STD3-DB25P (DB25 with male pins);
$295 * for CABLEx-SIO4B-STD3-DB25S (DB25 with female sockets);

For cable documentation for the CABLEx-SIO4B-STD3 family, CLICK HERE.

Serial IO Cables with RS530 Pin-Out:

$295 * for CABLEx-SIO4B-STD3-DB25P-RS530 (DB25 with male pins);
$295 * for CABLEx-SIO4B-STD3-DB25S-RS530 (DB25 with female sockets);

For cable documentation for the CABLEx-SIO4B-STD3-DB25x-RS530 family, CLICK HERE.

Serial IO Cables with DB9 Connectors:

$295 * for CABLEx-SIO4B-STD1-DB9P (DB9 with male pins);
$295 * for CABLEx-SIO4B-STD1-DB9S (DB9 with female sockets);

This cable is suitable for asynchronous protocols where only data connections are needed (no clock). This cable is not suitable for -SYNC versions of the serial cards.

Please Note: The CABLEx-SIO4B-STD1-DB9x only supports single-ended cable protocols such as RS232. For differential cable protocols such as RS422/485, please see the CABLEx-SIO4B-STD2-DB9x below.

For cable documentation for the CABLEx-SIO4B-STD1-DB9x family, CLICK HERE.

$295 * for CABLEx-SIO4B-STD2-DB9P (DB9 with male pins);
$295 * for CABLEx-SIO4B-STD2-DB9S (DB9 with female sockets);

This cable is suitable for synchronous protocols (HDLC, Isochronous, etc) where a separate clock and data are needed. This cable is suitable for the -SYNC version of the serial cards only if used in two-signal mode (clock and data only).

Please Note: The CABLEx-SIO4B-STD2-DB9x cable can be used with either single-ended cable interfaces like RS232 or differential interfaces such as RS422/485.

For cable documentation for the CABLEx-SIO4B-STD2-DB9x family, CLICK HERE.

CABLEx-SIO4B-FLAT - 4-channel Serial IO cables with 68-pin AMP mating connector on one end only

$195 is the price for all cables with a connector on one end, up to 12 feet long; add $10 per foot for cable lengths over 12 feet.
x = length in feet, in multiples of 1.5 ft;
Please Note: if you require a metal backshell, please add -BACKSHELL to the part number and an additional $100 to the total cost (ex: CABLEx-SIO4B-FLAT-BACKSHELL).

Serial Cables with 68-pin AMP mating connector are non-shielded.
For Cables with 68 Pin AMP connectors if Shielded Cable is required add "SH" to the part number after the length specified and an additional $100 to the total cost (ex: CABLExSH-SIO4B-FLAT).
Download 3D CAD drawings of this product (STEP file)

8-CHANNEL SERIAL IO CABLES

Cables compatible with PCI-SIO8BXS/PCIe4-SIO8BX2/PCI-SIO8BXS-SYNC/PCIe4-SIO8BX2-SYNC:
RS530 cables are available with two different pin-outs.
The pin-out for the two versions of the cables are identical, except for the -REV version has the polarity of the differential signals reversed.

Please select the one below that best fits your application:

*CBLx-SIO8BXS-DB25P-RS530A (DB25 male connectors);
*CBLx-SIO8BXS-DB25S-RS530A (DB25 female connectors);

*$695 each for cables up to 6ft long, x = length in feet
*$995 each for cables 7.5 to 12ft long, x = length in feet
For lengths over 12ft, please contact the factory.
For cable documentation for the CBLx-SIO8BXS-DB25x-RS530A family, CLICK HERE.

*CBLx-SIO8BXS-DB25P-RS530A-REV (DB25 male connectors);
*CBLx-SIO8BXS-DB25S-RS530A-REV (DB25 female connectors);

*$695 each for cables up to 6ft long, x = length in feet
*$995 each for cables 7.5 to 12ft long, x = length in feet

For lengths over 12ft, please contact the factory.

For cable documentation for the CBLx-SIO8BXS-DB25x-RS530A-REV family, CLICK HERE.

*CBLx-SIO8BXS-STD3-DB25P (DB25 male connectors)
*CBLx-SIO8BXS-STD3-DB25S (DB25 female connectors)

*$695 each for cables up to 6ft long, x = length in feet
*$995 each for cables 7.5 to 12ft long, x = length in feet
For lengths over 12ft, please contact the factory.

For cable documentation for the CBLx-SIO8BXS-STD3-DB25x family, CLICK HERE.

*CABLEx-SIO8BXS-STD2-DB9P (DB9 with male pins);
*CABLEx-SIO8BXS-STD2-DB9S (DB9 with female sockets);

*$695 each for cables up to 6ft long, x = length in feet
*$995 each for cables 7.5 to 12ft long, x = length in feet
For lengths over 12ft, please contact the factory.

This cable is suitable for synchronous protocols (HDLC, Isochronous, etc) where a separate clock and data are needed. This cable is suitable for the -SYNC version of the serial cards only if used in two-signal mode (clock and data only).

For cable documentation for the CBLx-SIO8BXS-STD2-DB9x family, CLICK HERE.

CABLEx-SIO8BXS-FLAT - 8-channel Serial IO cables with a connector on one end only (board mating connector)

x = length in feet):
*$350 each for cables with a connector on one end only, up to 6ft long
*$600 each for cables with a connector on one end only, 6.1ft to 12ft long
For lengths over 12ft, please contact the factory.


VHDCI CABLE Part number Options:

For Cables compatible with SIO8BX2V boards:
VHD<Length>-4D25<Gender>-S<Pinout><Exit>

<Length> => Total Length of Cable, in Feet

<Gender> => DB25 Gender
    P = Pin (Plug)
    S = Socket (Receptacle)

<Pinout> => DB25 Pinout (See following tables)
    0 = Standard
    1 = RS530A
    2 = RS530A Reversed

Note: Pinouts refer to pinouts used for DB25s in other GSC Serial Cables

<Exit> => VHDCI Cable Exit
    S = Straight Exit
    R = 45º Right Exit - toward Pin 1/35
    L = 45º Left Exit - toward Pin 34/68

Example: 8 ft cable, 4x DB25 Plug, STD pinout, Straight Exit VHDCI:
PN = VHD8-4D25P-S0S

For cable documentation for VHDCI serial cables, CLICK HERE.

Delivery is determined based on cable length and options required with standard delivery lead-time estimated at 8-10 weeks ARO to build.

$595* is the price for VHDCI Cables 3' and 6' long.
$795* is the price for VHDCI Cables 8’ and up to 12 feet long.
Please add $10 per foot for cable lengths over 12 feet.

*VHDCI Cables are not eligible for any discounts.

For quantities of 20x or more, please contact our Sales Department for a quote.

Cables compatible with legacy PMC-SIO4, cPCI-SIO4, and PCI-SIO4 boards are:
* The $195 is the price for serial IO cables, up to 12 feet long; add $10 per foot for cable lengths over 12 feet.

$195 * for CABLEx-SIO4-STD2-DB25P (DB25 with male pins);
$195 * for CABLEx-SIO4-STD2-DB25S (DB25 with female sockets);

For cable documentation for the CABLEx-SIO4-STD2-DB25 family, CLICK HERE.

--- Serial IO Cables for RS-232; RS232C Pin-out ----------

Cables compatible with PMC-SIO4-232, cPCI-SIO4-232, and PCI-SIO4-232 boards are:
$195 * for CABLEx-SIO4-STD232C-DB25P (DB25 with male pins);
$195 * for CABLEx-SIO4-STD232C-DB25S (DB25 with female sockets);

For cable documentation for the CABLEx-SIO4-STD232C-DB25 family, CLICK HERE.

BNC and Custom Cables, Cable Connectors:

Cable with BNC connectors:
Cable part numbers for cables with BNC connectors are CABLEX-NNN-BNC-PP.
X = length in feet, in multiples of 1.5 ft
NNN is the model number of the board, and
PP is the number of signals.

Please inform GSC what signals you need BNC connectors for before placing an order.

For example, the part number for a 6 ft cable with 34 BNC connectors for the
PCI-24DSI-32 board is CABLE6-PCI-24DSI32-32-BNC-34.

$395 is the price for all cables with no more than 16 BNC connectors,
up to 12 feet long; add $10 per foot for cable lengths over 12 feet.

$595 is the price for all cables with 17 – 32 BNC connectors, up to
12 feet long; add $10 per foot for cable lengths over 12 feet.

$795 is the price for all cables with 33 – 48 BNC connectors, up to
12 feet long; add $10 per foot for cable lengths over 12 feet.

$995 is the price for all cables with 49 – 64 BNC connectors , up to
12 feet long; add $10 per foot for cable lengths over 12 feet.

Cables with BNC connectors for 65+ channels, up to 12 feet long, are considered custom cables.

Note: Contact factory if BNC connectors are needed for digital I/O channels or multi-board synchronization channels.
Customized Cables:
User can specify a special connection diagram used to build the cables. Customers will need to provide a wiring diagram to receive pricing and a special part number. Stocked lengths are TBD at time of purchase.

Connectors for Cables:
Instead of a connector part number, simply provide this description: "cable connector compatible with 'board model number'." NOTE: High density connectors are often hard to obtain in quantity less than 200, so we stock them and sell in unit quantity as a service to our customers.
Note: Most connectors are high density types and require special tooling to attach to a cable. Thus, it is recommended that a customer purchase cables from GSC, at least cable with a connector on one end. The twist-n-flat cable used is standard mil spacing and will mate with most traditional flat cable connectors.

Simply specify what board they are to mate with. Connectors are $20.00 each.

RoHS Compliant cables:
For RoHS Compliant cables with lead-free connectors and solder,
add $50 to the cost of the cable and add "-ROHS" to the end of the part number.

Breakout Board/Cable Interface Module

Compact and reliable transitions between high density connectors and high quality spring loaded terminal blocks. Modules are 2.88" in width (length varies depending on part number) so they can be mounted in standard DIN rail fixtures. Terminal blocks accept 18 - 26 AWG wire.

Cable Interface Module part numbers are: CBLIFMOD-X, where x is the model number of the board.
For example: The part number for a Cable Interface Module for the PMC-HPDI32A board would be CBLIFMOD-PMC-HPDI32A.
Cable Interface modules are $295 each. Cables are sold separately.

Note: If screw-clamp terminals are needed instead of the spring loaded terminal blocks, add a -1 to the end of the part number. For example the part number for a Cable Interface Module with screw-clamp terminals for the PMC-HPDI32A board would be CBLIFMOD-PMC-HPDI32A-1.
Cable Interface Modules

Option DIN Rail Mounting:
The Cable Interface modules with Din Rail Enclosure is $395.00 each
Price for the Din Rail Enclosure sold separately is $95.00 each
Cables are sold separately.
DIN Rail with spring loaded terminal blocks, the part numbers are: CBLIFMOD-X-0-1, where x is the model number of the board
P/N Ordering Options:
For example: The part number for a DIN Rail with spring load blocks for the PMC-HPDI32A board would be CBLIFMOD-PMC-HPDI32A-0-1

Note: If screw-clamp terminals and DIN-Rail enclosure for the PMC-HPDI32A board would be CBLIFMOD-PMC-HPDI32A-1-1.




Custom Breakout Board/Cable Interface Module with 85-PIN High Density Connectors:

The customize Interface Module will be require for the follow products.
Please contact Sales for pricing on breakout boards with Din Rail Mounting at sales@generalstandards.com.

PCIE-24DSI64C200K:
CBLIFMOD-24DSI64C200K-0 $995 EA 85-PIN Breakout Boards with Spring Load Terminals
Note: If screw-clamp terminals are needed instead of the spring loaded terminal blocks, add a -1 to the end of the part number.

BNC Boxes:

BNC connector box part numbers are BOX-BNC-NNN where NNN should be replaced with the model number of the board.
For example, the part number for the BNC connector Box for the PCI66-16AO16-16 is BOX-BNC-PCI66-16AO16-16.
All BNC Boxes contain isolated BNC connectors.
Contact factory for pricing if you do not see a price below for a particular BNC Box. Contact factory for availability and minimum orders of BNC boxes.

Cables are sold separately.

$995 each for BOX-BNC-PC104P-24DSI6LN-10.

$995 each for BOX-BNC-PC104P-24DSI12-17.

$995 each for BOX-BNC-PMC-16AIO88-16 (Accommodates 8 input channels and 8 output channels)

$995 each for BOX-BNC-PCI66-16AISS8AO4-16.

$995 each for BOX-BNC-12AISS44AO4-SE-16.

$1245 each for BOX-BNC-PCI-ADADIO-30
Includes the VREF ADJUST REFERENCE, OUTPUT STROBE READY, INPUT RETURN, etc in addition to the 22 signals (analog inputs, analog outputs, and digital I/O).

$1245 each for BOX-BNC-PCI-24DSI32-32(Accommodate all signals including 32 input channels plus clock and sync for the PCI-24DSI32 board).

$1495 each for BOX-BNC-PCI66-16AO16-64
(Accommodates 4 boards).

$1400 each for BOX-BNC-PCI66-16AO16-48
(Accommodates 3 boards).

$995 each for BOX-BNC-PCI66-16AO16-16
(Accommodates 1 board).

$1495 each for BOX-BNC-PCI66-16AI64SSA-64.

BNC Connector Box Documentation:
16AIO-SE-SCSI3 BNC Connector Box




BNC Rack Panels:

BNC Rack Panel part numbers are PNL-BNC-QxNNN where Q is the quantity of boards and NNN is the model number of the board. For example, the part number for the BNC rack panel for two PCI-16HSDI boards is PNL-BNC-2xPCI-16HSDI.
The BNC Rack Panel will have the same mating connector as the GSC board that will interface with the panel. Each rack panel is basically composed of a variety of BNC pcb boards. There is one pcb board per GSC board. We also offer T.R.S. connectors for the Rack Panels.
Contact factory for pricing if you do not see a price below for a particular BNC Rack Panel. Contact factory for availability and minimum orders of BNC Rack Panels. Cables are sold separately.

Cables are sold seperately.

Examples of Rack Panels Sold:
$1795 each for PNL-TRS-1x24DSI12-1x16AO16-1x16AO12 (One 24DSI12, One 16AO16, One 16AO12 with T.R.S. connectors)

$1995 each for PNL-BNC-3x16SDIHSDB50-1x16AO12 (Three 16SDIHS-DB50, One 16AO12)

$2495 each for PNL-BNC-4xPMC-16HSDI-1x16AO12 (Four 16HSDI, One 16AO12)

$2595 each for PNL-BNC-1x-24DSI64C200K (one BNC board per rack panel)

Hinged Rack Panels
HPNL-1x16AI64SSC: $1,395.00 each
HPNL-1x16AISS8AO4: $995.00 each
HPNL-1x16AO64C: $1,395.00 each




Clock Driver Boards


PMC-LVDS-Clock Driver:

$995 each for the PMC-LVDS-CLOCK DRIVER
Available in all form factors including PCI, cPCI, PC104-Plus and PMC. The 12-channel PMC-LVDS-CLOCK DRIVER Board provides a means of distributing LVDS signals among multiple boards, all from within a standard single-width PMC module. Optimized for flexibilty and performance, the board is ideal for multi-board synchronization. Also available, LVDS to TTL conversion or TTL to LVDS.

PNL-LVDS CLOCK DRIVER-32:

$1,500 each for the PNL-LVDS CLOCK DRIVER-32 ; This is a 32-channel LVDS Clock Driver Board; it provides a means of distributing LVDS signals among multiple boards (up to 16 boards). Rack panel hardware sold separately.

PMC66-16AO16-CLK485TTL16:

$995 each for the PMC66-16AO16-CLK485TTL16 DRIVER
Available in all form factors including PCI, cPCI, PC104-Plus and PMC. The PMC66-16AO16-CLK485TTL16 board provides RS485 and TTL I/O with on board clocks (resembling the General Standards PMC66-16AO16 Product) available. This product provides sixteen TTL Output channels divided into 4 banks of 4 channels each which can be configured to be driven by the on board clocks, one of the two available TTL inputs, or any of the eight available RS485 inputs.


REACH and RoHS Statements
TEAMWORK == Together we achieve the Extraordinary.
8302A Whitesburg Drive · Huntsville, AL 35802
For Price and Availability, call direct at 256-704-8341
For all other inquiries, call (256)880-8787 or (800)653-9970
Email: Contact a member of our customer support team now!

Analog Products : Digital Products : Serial Products
Request a Quote! : Contact Info : Site Map : Home
