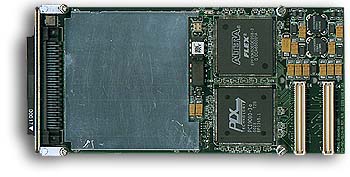

PMC-16AICS32

32-CHANNEL 16-BIT TRANSDUCER INPUT board With Scanning Input Current Source

32 Differential or 64 Single-Ended 16-Bit Scanned Analog Voltage Input Channels
32-Channel Precision Scanning Excitation Current Source; 0.4ma to 10ma Options
Input Ranges Selectable as ±10V, ±5V or ±2.5V
Excitation Applied to any Channel Combination Under a Control Mask High Input Impedance for Channels Not Requiring Excitation
Scan Rate Internally Adjustable from 0.06 to 3000 32-Channel Scans per Second
External Hardware Sync Input/Output (Alternate Function for Channel 31)
Data Buffered through a 64K-sample FIFO
Continuous and Burst (One-Shot) Input Modes
Scan Sizes from Two to 32 Channels-per-Scan; or Single-Channel sampling of any Channel
On-Demand Internal Autocalibration
DMA Engine Supports Block Mode Transfers
Completely Software-Configurable; No Field Jumpers
Single-width PMC Form Factor with EMI Shield and Panel Bezel

New Feature! Call for availability of a conduction cooled (CCPMC) version of this board! Read more about our new PMC Conduction Cooled products!

Any PMC board can be used on PCI Express, PCI-X, cPCI-X, PCI, cPCI, PC/104-Plus via an adapter. View a list of our adapters.

Request a price and delivery quote on this product!

Extended temperature versions are available for all products.

Please contact us for more information!

We feature free Windows and Linux drivers where available.

CE Certification Available - Call factory for status
