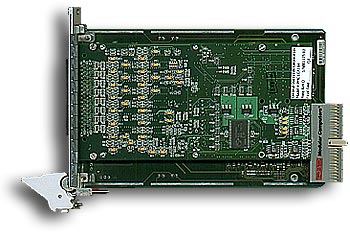

cPCI-16SDI-HS16-Bit, Six-Channel Sigma-Delta Analog Input PMC Board
With 1.1 MSPS Sample Rate per Channel, and Two Independent Clocks Request a Quote!
 Sigma-Delta Conversion; No External Antialiasing Filters Required
High Effective Sampling Rate; 16-32 Times the Effective Rate of Successive
Approximation Converters Operating at the Same Conversion Rate
Integral Antialiasing Input Filters Reject Out-of-Band Interference Components
Software-Selectable Ranges: ±1.25 Volts, ±2.5 Volts, ±5 Volts or ±10 Volts
Six 16-Bit Analog Input Channels; Dedicated Sigma-Delta Converter per Channel
Sample Rates Adjustable up to 1,100 K-Samples per Second per Channel
Two Independent Sample-Rate Generators; Adjustable with 0.2 Percent Resolution
Low Noise; Less than 130µVRMS on ±1.25 Volt Input Range
64K-Sample FIFO Buffer with 2-Channel DMA support. All Data is Channel-Tagged.
Harmonic Sampling Supported, with Clocking Ratios Between Channels from 1 to 20
Auto calibration Uses Hardware Correction; No missing Codes Introduced
Integral Shield Assures Minimum Susceptibility to Radiated Noise in PMC Environments
Request a price and delivery quote on this product!
Industrial temperature versions are available for all products.
Please contact us for more information!
We feature free Windows and Linux drivers where available. CE Certification Available - Call factory for status
